The printing industry is constantly seeking methods to improve sustainability and cost-effectiveness. Waste reduction and material optimization are paramount concerns for businesses operating in narrow web, flexographic, and offset printing. Fortunately, advancements in curing technology offer significant advantages. Specifically, UV LED curing systems are revolutionizing how printers approach these challenges, presenting a powerful solution for reducing both heat and material waste.
The Challenge of Traditional Curing Methods
For decades, conventional curing methods have relied on heat-based systems or mercury-vapor UV lamps. While these technologies have served the industry, they come with inherent drawbacks that directly impact waste and energy consumption.
Heat-Based Curing: Traditional ovens or hot air dryers require substantial energy input to raise the temperature of the substrate and ink. This process can lead to:
- Substrate Distortion: High temperatures can warp or shrink sensitive materials, leading to registration issues and requiring reprints. This directly translates to material waste.
- Increased Energy Costs: The continuous energy draw for heating is a significant operational expense.
- Longer Drying Times: Slower drying processes can bottleneck production, impacting overall throughput and efficiency.
Mercury-Vapor UV Lamps: While faster than heat curing, traditional mercury-vapor UV lamps also present challenges:
- High Heat Emission: These lamps generate considerable heat, contributing to substrate issues and requiring robust exhaust systems.
- Energy Inefficiency: A significant portion of the energy consumed by mercury lamps is converted into heat rather than UV light.
- Lamp Replacement and Disposal: Mercury lamps have a finite lifespan, requiring frequent replacement. The disposal of these lamps also poses environmental concerns due to their mercury content.
- Ozone Production: Mercury lamps produce ozone, necessitating ventilation systems and adding to operational complexity.
These factors collectively contribute to increased material waste through spoilage and energy costs that eat into profit margins.
The UV LED Advantage: A Smarter Approach to Curing
UV LED curing systems represent a paradigm shift, offering a more targeted, efficient, and environmentally friendly solution. Unlike traditional lamps, UV LEDs emit light within very specific wavelengths. This precision, combined with their inherent design, leads to substantial improvements in heat management and waste reduction.
How UV LED Curing Works
UV LED curing utilizes Light Emitting Diodes (LEDs) to generate ultraviolet light. These diodes are designed to emit UV energy at precise wavelengths, typically in the UVA spectrum (365nm, 395nm, 405nm). When this UV light strikes specially formulated UV-curable inks, coatings, or adhesives, it initiates a rapid photochemical reaction. This process, known as polymerization, transforms the liquid material into a solid, durable film almost instantaneously.
The key difference lies in the efficiency and nature of the energy transfer. UV LEDs emit light directionally and at specific wavelengths required for curing, with minimal heat generated as a byproduct. This focused energy transfer is the cornerstone of their waste-reducing capabilities.
Reducing Heat Waste with UV LED Systems
One of the most significant benefits of UV LED curing is its drastically reduced heat output compared to traditional methods.
- Lower Operating Temperatures: UV LEDs produce very little infrared radiation, the primary component of heat. This means the substrate remains significantly cooler throughout the curing process. This is particularly advantageous for narrow web printing on heat-sensitive materials like thin films, plastics, and certain papers. Reduced heat exposure prevents distortion, shrinking, and delamination, thereby minimizing waste due to substrate damage.
- Elimination of Excessive Heat Exhaust: Traditional systems often require extensive ventilation to dissipate heat, consuming additional energy and space. UV LED systems generate so little heat that in many applications, dedicated exhaust systems become unnecessary or can be significantly downsized, leading to energy savings and a simpler operational setup.
- Consistent Curing Performance: The localized and controlled nature of UV LED curing ensures consistent cure across the entire print area. This predictability reduces the chances of partial curing or over-curing, both of which can lead to print defects and wasted materials.
Minimizing Material Waste Through Enhanced Print Quality and Process Control
Beyond direct heat reduction, UV LED curing contributes to material waste reduction in several other critical ways:
- Instantaneous Curing and Tack: UV LED inks cure almost instantly upon exposure to UV light. This immediate solidification means inks do not have time to spread or bleed, resulting in sharper dot definition and cleaner lines. This is crucial for high-resolution graphics and small text common in label printing. Better print definition means fewer rejects due to poor quality.
- Reduced Ink Migration: The rapid curing process locks the ink components onto the substrate, significantly reducing the potential for ink migration. This is vital for food packaging and other sensitive applications where contamination is a serious concern. Reduced migration means fewer product recalls and less wasted product.
- Wider Substrate Compatibility: Because UV LED systems operate at lower temperatures, printers can confidently run a broader range of substrates, including thinner and more delicate materials that would be unsuitable for heat-curing methods. This expands application possibilities and reduces the need for specialized, potentially more expensive, materials or the risk of damaging existing ones.
- Improved Ink Adhesion and Durability: UV LED cured inks and coatings offer excellent adhesion and resistance to scratching, chemicals, and abrasion. This enhanced durability means printed products are less likely to be damaged during handling, finishing, or their intended use, leading to fewer product failures and less waste over the product lifecycle.
- Reduced Ink and Coating Consumption: The precise application and instantaneous cure of UV LED systems often allow for thinner ink layers to achieve the desired opacity and color intensity, potentially leading to reduced ink consumption over time. Furthermore, the reduced risk of uncured ink contamination means less ink is wasted during setup and cleanup.
- Faster Job Turnaround: The instantaneous curing capability of UV LEDs dramatically reduces drying times between print stations or during finishing processes. This allows for faster job turnaround, leading to higher productivity and a more efficient use of materials and press time. Less time spent on press for a single job means less potential for errors and waste.
Applications in Key Printing Sectors
The benefits of UV LED curing are particularly pronounced in specific printing sectors:

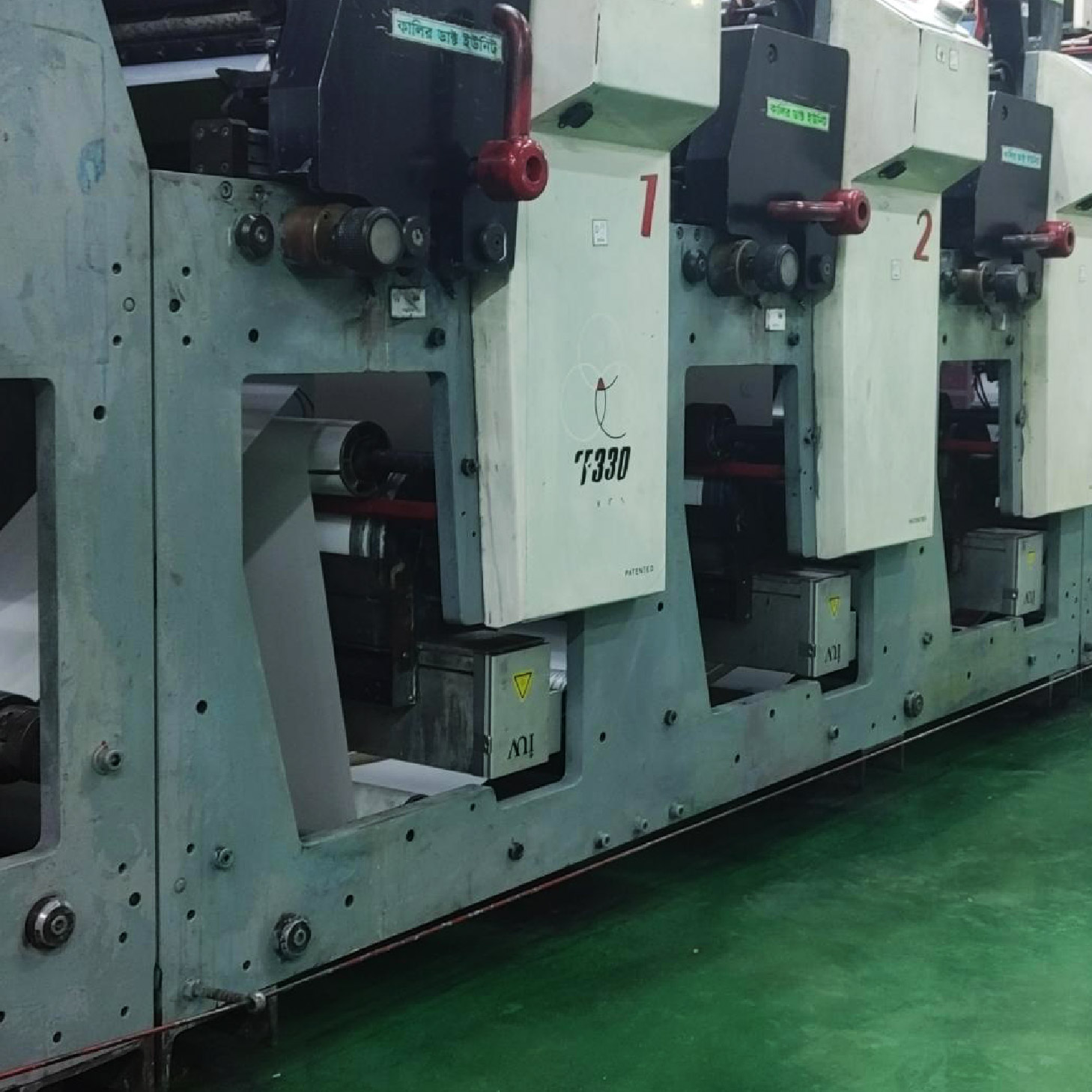

- Narrow Web Printing: This sector, heavily focused on labels and flexible packaging, benefits immensely from UV LED’s low heat and instant cure. It allows for high-speed printing on delicate films and papers without distortion, enabling complex multi-layer constructions and high-quality graphics.
- Flexographic Printing: UV LED curing is a natural fit for flexography, especially in its narrow web applications. The fast curing allows for higher press speeds, better ink laydown, and sharper image reproduction, all contributing to less waste and improved efficiency.
- Offset Printing: In offset, particularly for shorter runs and specialty printing, UV LED offers advantages in terms of reduced makeready waste and the ability to print on a wider array of non-absorbent substrates. The instant cure eliminates inter-deck drying bottlenecks.
Making the Transition to UV LED
Adopting UV LED curing technology involves careful consideration. Key factors include:
- Ink and Coating Formulation: It is essential to use inks and coatings specifically formulated for UV LED curing, as they contain photoinitiators that react to the precise wavelengths emitted by the LEDs.
- Equipment Integration: UV LED systems can be retrofitted onto existing printing presses or integrated into new equipment. Engineers and technicians need to ensure proper alignment, power supply, and cooling (though minimal with LEDs) for optimal performance.
- Wavelength Selection: Different applications may benefit from different UV LED wavelengths. Consulting with equipment and ink manufacturers is crucial to select the most appropriate system for specific inks and substrates.
- Cost-Benefit Analysis: While the initial investment in UV LED systems can be higher than traditional mercury lamps, the long-term savings in energy, reduced waste, increased productivity, and longer lamp life typically provide a strong return on investment.
Conclusion: A Sustainable Future for Printing
UV LED curing systems offer a compelling solution for printers aiming to reduce heat and material waste. By providing precise, efficient UV energy with minimal heat output, they enhance print quality, expand substrate compatibility, and significantly cut down on operational costs. As the industry continues to prioritize sustainability and efficiency, UV LED technology stands out as a vital tool for achieving these goals, paving the way for a cleaner, more cost-effective, and waste-conscious printing future.
